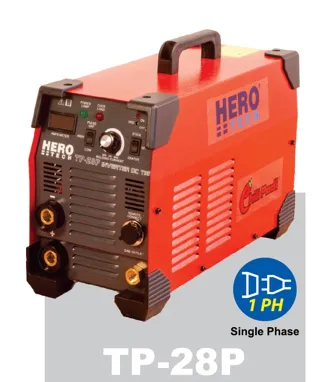

GTAW (TIG) Welding Machine TP-20P / TP-28P
TIG SERIES
Features:
- Constant output by digital control inverter
- High reliable PC Board complete with a wide range of welding current
- High-frequency DC arc starting with pulse control
- Continuous pulse adjustment for automatic welding
- Multiple circuit protection
- Voltage Peduction Device (VRD) safety feature included as standard

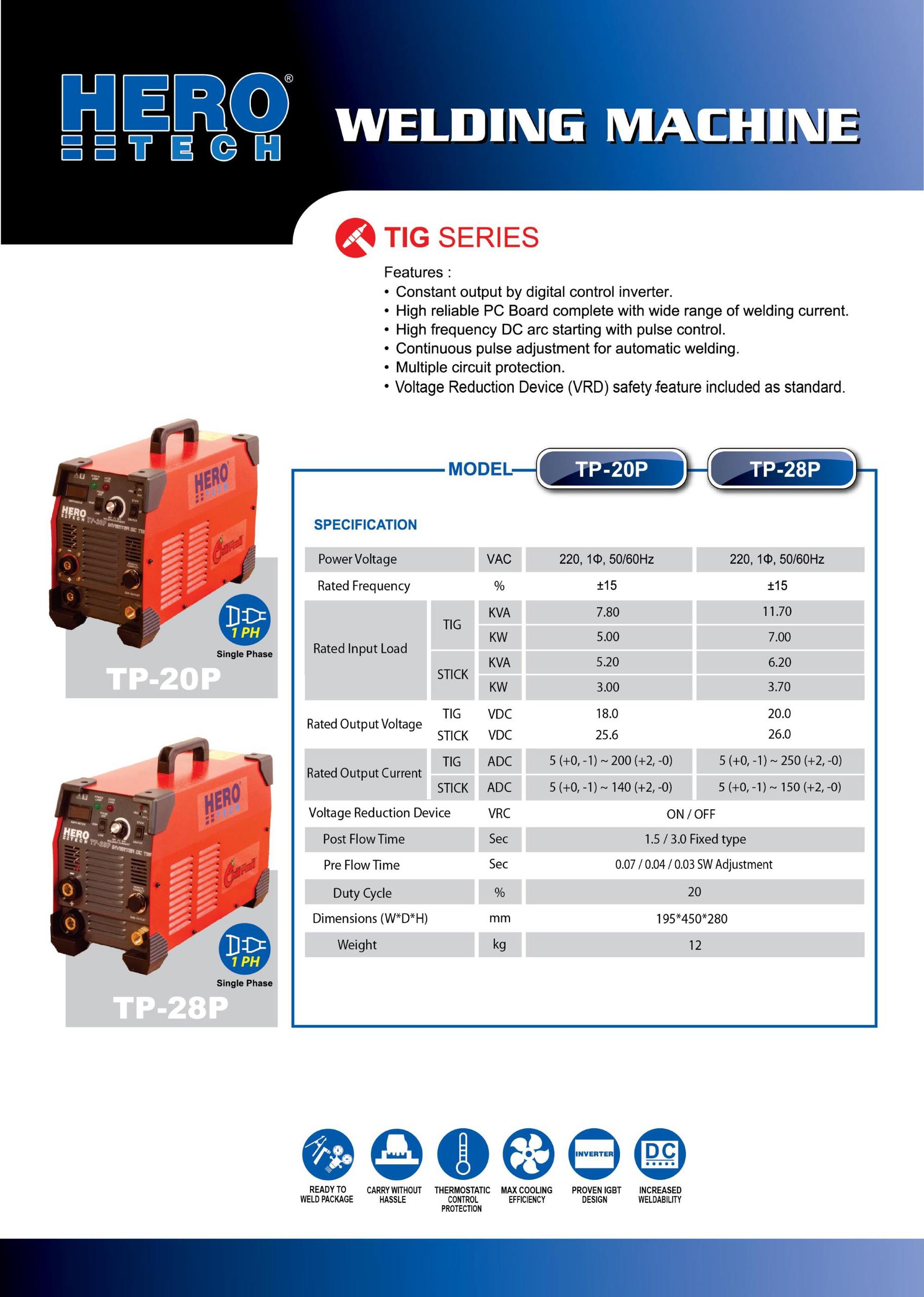

| SPECIFICATION | TP - 20P | TP - 28P |
| Power Voltage (VAC) | 220, 1Ø, 50/60Hz | 220, 1Ø, 50/60Hz |
| Rated Frequency (%) | ±15 | ±15 |
| Rated Input Load |
TIG 7.80(KVA) / 5.00(KW) STICK 5.20(KVA) / 3.00(KW) |
TIG 11.70(KVA) / 7.00(KW) STICK 6.20(KVA) / 3.70(KW) |
| Rated Output Voltage (VDC) | TIG 18.0 STICK 25.6 |
TIG 20.0 STICK 26.0 |
| Rated Output Current (ADC) | TIG 5(+0,-1) ~ 200(+2/-0) STICK 5(+0,-1) ~ 140(+2/-0) |
TIG 5(+0,-1) ~ 250(+2/-0) STICK 5(+0,-1) ~ 150(+2/-0) |
| Voltage Reduction Device (VRC) | ON/OFF | ON/OFF |
| Post Flow time (Sec) | 1.5/3.0 Fixed Type | 1.5/3.0 Fixed Type |
| Pre Flow Time (Sec) | 0.07/0.04/0.03 SW Adjustment | 0.07/0.04/0.03 SW Adjustment |
| Duty Cycle (%) | 20 | 20 |
| Dimension (W*D*H) mm | 195*450*280 | 195*450*280 |
| Weight (KG) | 12 | 12 |
TP 2000P 20180323
